LS-200

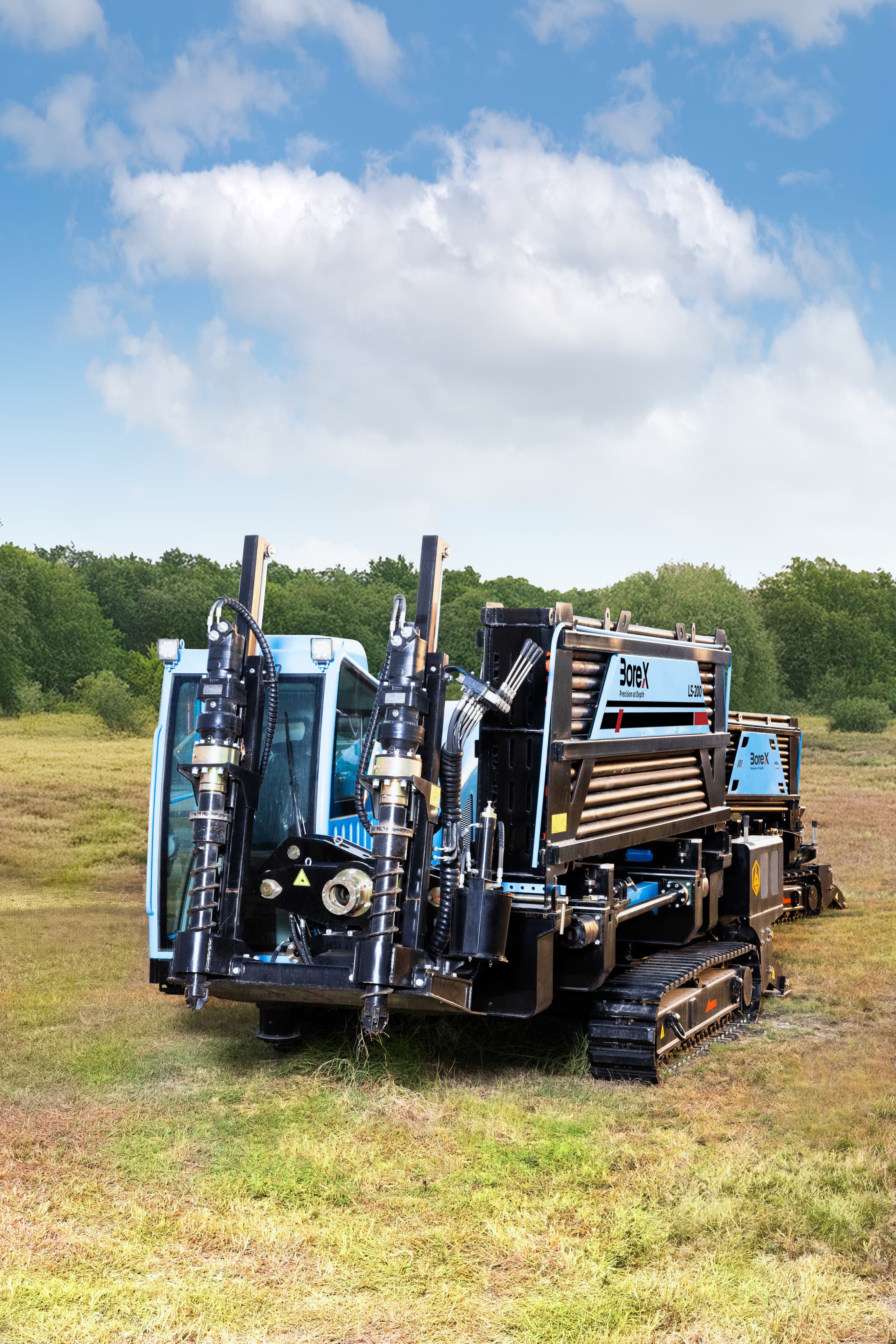

LS-200 Borex Machine
LS-200 Borex Machine
A powerful, durable drilling rig with a 180 HP Cummins engine, 48,500 lbs of thrust, and a 66 GPM mud pump for efficient performance in tough conditions.
Contact Us

Key Features

Feature Description
Condensed PowerFeaturing a compact and efficient design, the Borex LS-200 is powered by a robust 180 HP Cummins 6BT engine, ensuring reliable performance and adaptability for any job condition.
Increase ProductivityThe LS-200 delivers a remarkable 48,500 lbs of thrust and pullback, complemented by an impressive 6,391 nM of rotational torque, ensuring powerful and efficient performance in horizontal drilling applications.
RobustDesigned for durability and performance in demanding field conditions, the LS-200 provides a robust and powerful platform, ensuring easy access for routine maintenance and exceptional reliability.
Work LongerThe air-conditioned cab offers comfortable seating and ergonomically designed controls, providing operators with a clear view of operations. The cab's layout also allows for repositioning and maneuvering of the rig without leaving the seat, ensuring optimal efficiency and comfort during extended drilling tasks.
Maximum PressureThe LS-200's high-performance mud pump delivers a maximum flow rate of 66 gallons per minute, with an impressive maximum pressure of 1,305 psi, ensuring efficient and reliable fluid handling for demanding drilling operations.
Increase EfficiencyWith a capacity to hold 640 feet of rods in the rack, the LS-200 allows operators to plan for extended drilling runs, enhancing operational efficiency and optimizing overall unit economics.

Description

The Borex LS-200 features a 180 HP Cummins 6BT engine, delivering 48,500 lbs of thrust, 6,391 Nm of torque, and exceptional efficiency for horizontal drilling. Built for durability, it offers easy maintenance access and reliability in demanding conditions. Its air-conditioned cab ensures operator comfort with ergonomic controls and repositioning capabilities. A high-performance mud pump provides 66 GPM flow at 1,305 psi, while a 640-foot rod capacity supports extended drilling runs, maximizing productivity and efficiency.

Machine Comparison: LS-200 vs. VERMEER D40x55 S3 HDD

Horizontal Drilling Machine Brand & Model BOREX LS-200 VERMEER D40x55 S3 HDD
Dimensions (Length / Width / Height)BOREX LS-200265 in / 85 in / 74 inVERMEER D40x55 S3 HDD240 in/89in / 76 in
WeightBOREX LS-20018078 lbsVERMEER D40x55 S3 HDD22,380 lbs
Engine PowerBOREX LS-200180 HPVERMEER D40x55 S3 HDD140 HP
Max Torque (Maximum Spindle Torque)BOREX LS-2004,714 ft-lbVERMEER D40x55 S3 HDD5,500 ft-lb
Maximum Spindle Speed at Max Engine RPMBOREX LS-200214 rpmVERMEER D40x55 S3 HDD227 rpm
Thrust & PullbackBOREX LS-20048,500 lbs/40,000 lbsVERMEER D40x55 S3 HDD40,000 lbs
Max Push & Pull SpeedBOREX LS-200157 ft/minVERMEER D40x55 S3 HDD188 ft/min
Drill RodBOREX LS-2002.375'' × 10'VERMEER D40x55 S3 HDD2.38'' × 10' or 2.63'' × 10'
Drill Rod Onboard CapacityBOREX LS-200640 ft VERMEER D40x55 S3 HDD500 ft
Max FlowBOREX LS-20066 gal/minVERMEER D40x55 S3 HDD50 gal/min
Max PressureBOREX LS-2001,305 psiVERMEER D40x55 S3 HDD1,050 psi
Minimum Bore DiameterBOREX LS-2004 inVERMEER D40x55 S3 HDD4 in
Maximum Ground Drive Speed at Max Engine RPMBOREX LS-2002.5 mphVERMEER D40x55 S3 HDD3.3 mph
Hydraulic Tank VolumeBOREX LS-20070 galVERMEER D40x55 S3 HDD55 gal
Diesel Fuel TankBOREX LS-20037 galVERMEER D40x55 S3 HDD44 gal
